Atlas Automotive Equipment Atlas Equipment PRO8000EXT 4 Post Lift + RJ35 Sliding Jacks Combo

Important Shipping and Payment Options:

Customer Pickup:  Please choose the option of "customer pickup" if you plan on picking the lift up yourself at our location. There is no shipping charge on customer pickup orders. We will not load your pickup under any circumstances. This includes all Pickup trucks including those with with 8' beds. Please bring a trailer or flat bed truck at least 10' long and capable of handling 1500 pounds. We cannot load enclosed trailers with fold down rear doors.

Payment options: Please call us about your payment options at 877-401-8703 before placing your order via the website.

LTL Truck Freight: We can ship direct to you anywhere in the 48 States. Lift will be shipped in van body tractor trailer or straight truck. Lift gate service is not availble for this lift. Customer is 100% responsible for unloading. You will need a forklift, skid loader or rollback to unload. You cannot unload this product with manpower. Driver has the right to refuse delivery if you are not prepared with equipment to unload. It is best to call us at 877-401-8703 to discuss your shipping options.

If the truck does not have access to your property or you don't have the neccesary equipment to unload, you may pick the lift up at the closest LTL Freight Terminal. You can then use your own equipment to pick up. They will not load your pickup under any circumstances. This includes all Pickup trucks including those with with 8' beds. Please use a trailer or flat bed truck at least 16' long and capable of handling 2200 pounds. They cannot load enclosed trailers with fold down rear doors.

Freight Damage: Customer is 100% responsible for reporting freight damage to us. All damage must be reported within 72 hours. If you think the unit is damaged and unusable, you have the right to refuse delivery. Please contact us at 877-401-8703 to report any issues with damage or LTL freight.

Payment options: Please use website for all payments on LTL Freight.

Intallation: This lift is sold as a do it yourself installation. We do not install or have any recommended installers.

The Atlas® Garage PRO8000 is our most popular 4-post hobbyist lift. Perfect for the customer with too many cars and not enough space. The Garage PRO8000 allows the user to easily double their space by stacking most passenger cars.

The Atlas® Garage PRO series of 4-post lifts (8,000 lb. capacity) are designed and built for use by homeowners or restoration shops. These lifts are not designed for use in commercial repair shops where they would be raised and lowered several times per day. If you have questions about which lift would best work in your application please contact a salesperson.

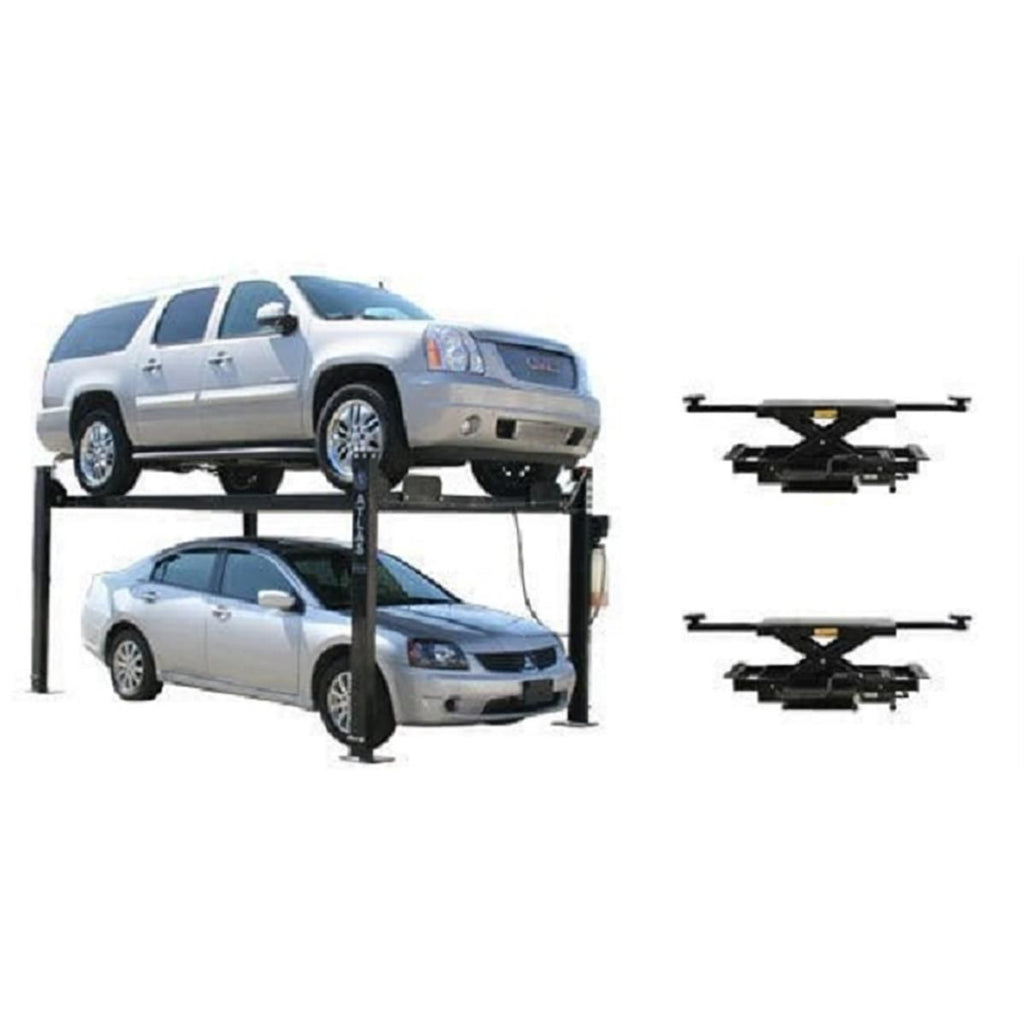

This combo package also includes two of the the popular Atlas® RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

⚠️ California Proposition 65 Warning

WARNING: Cancer and Reproductive Harm. For more information, visit www.P65Warnings.ca.gov.

Atlas® Garage PRO8000 Specifications

• Capacity 8,000 lb.
• Lifting Height To Top Of Runway 72" (6')
• Clearance Under Runways 67 (5' 7")

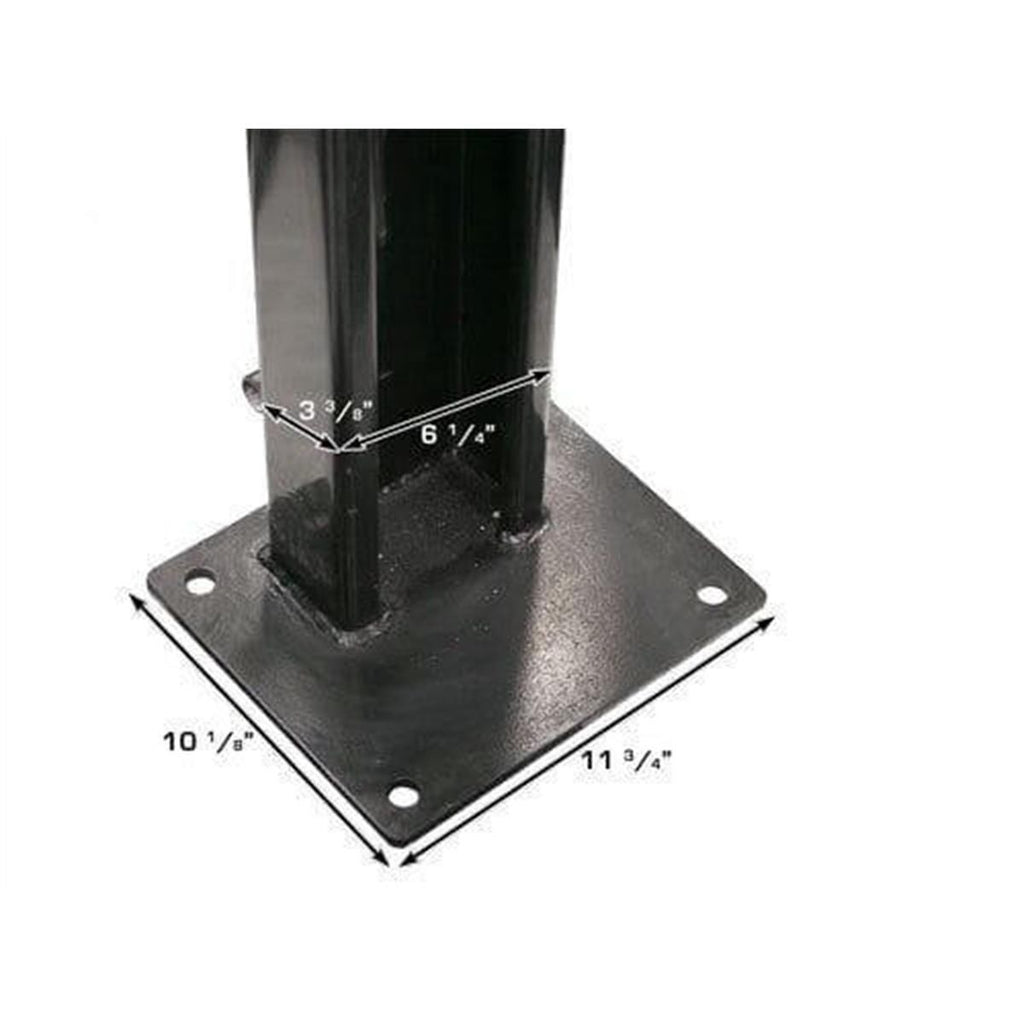

• Height Of Columns 83" (6' 11")
• Overall Width (Without Motor) 104 1/2" (8' 8 1/2")
• Overall Width (With Motor) 115" (9' 7")

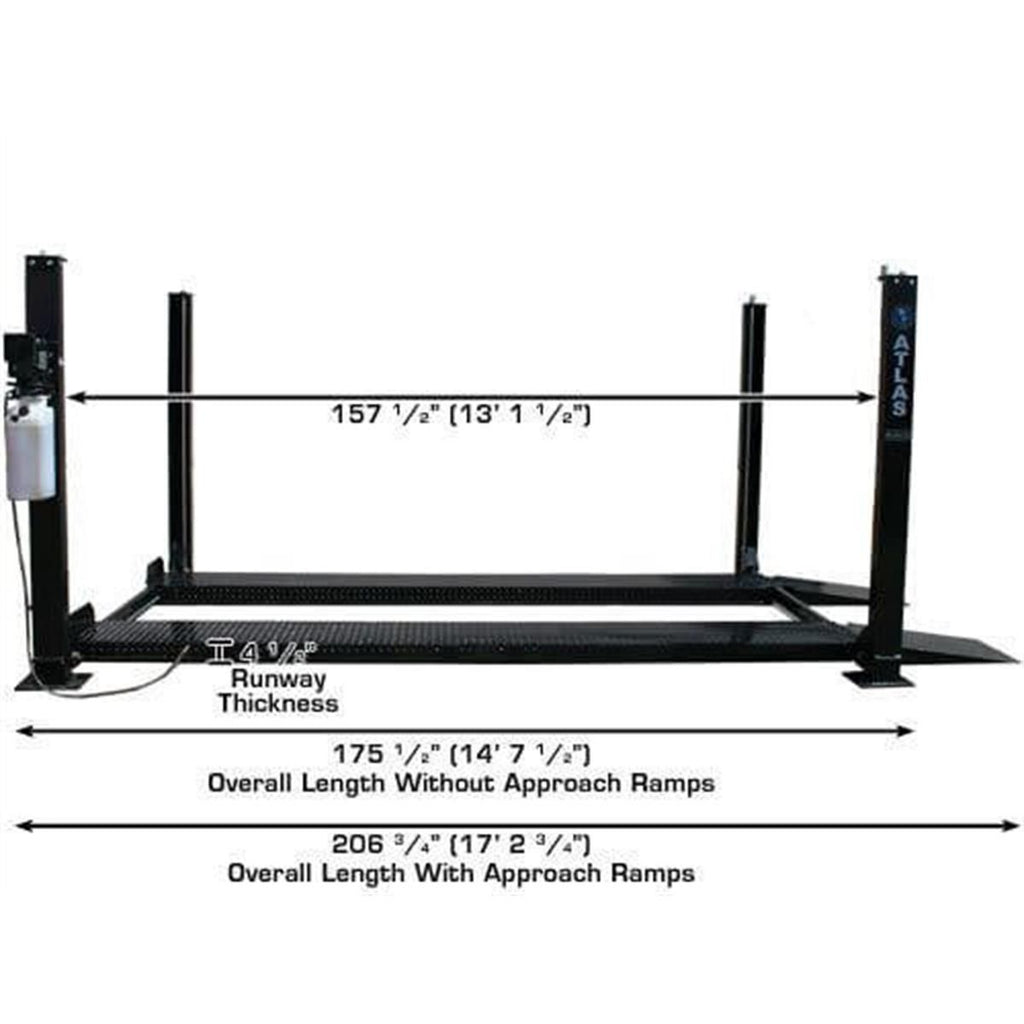

• Overall Length With Approach Ramp 206 3/4" (17' 2 3/4")

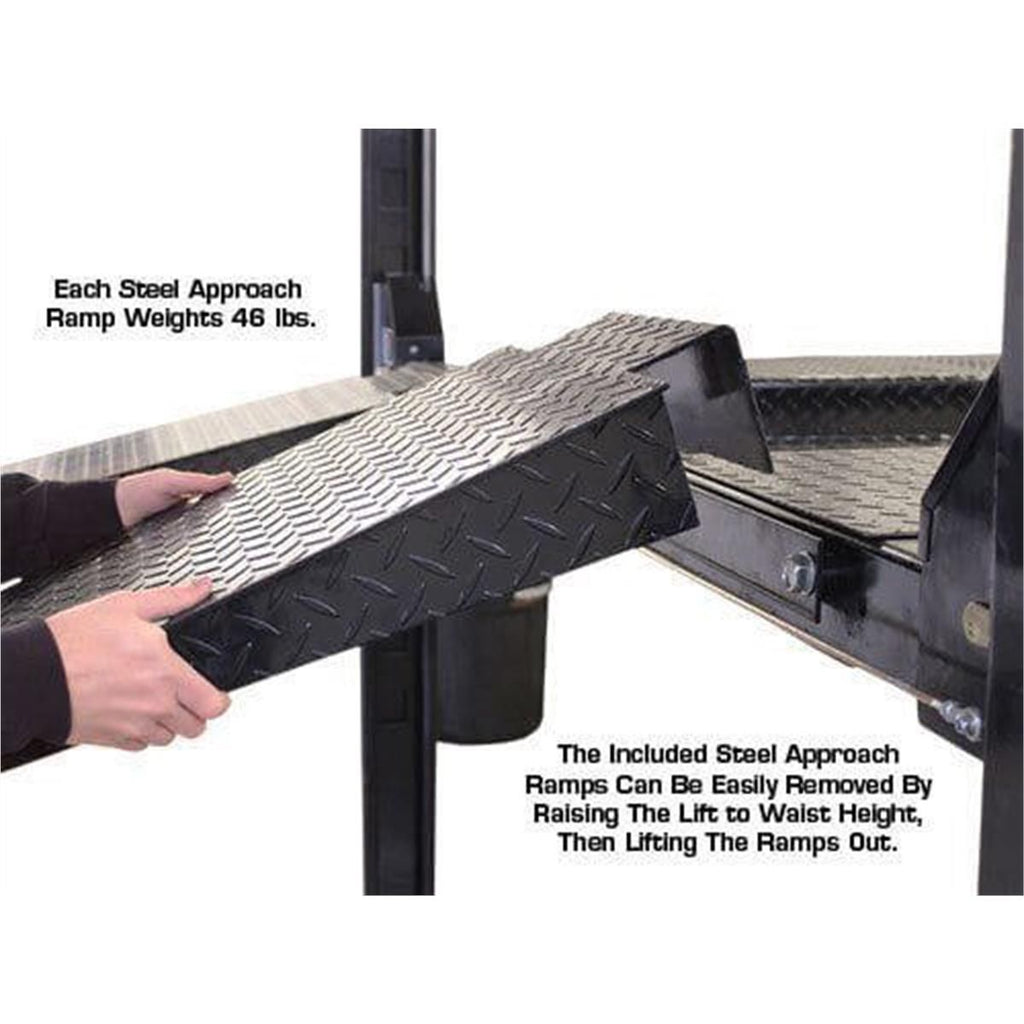

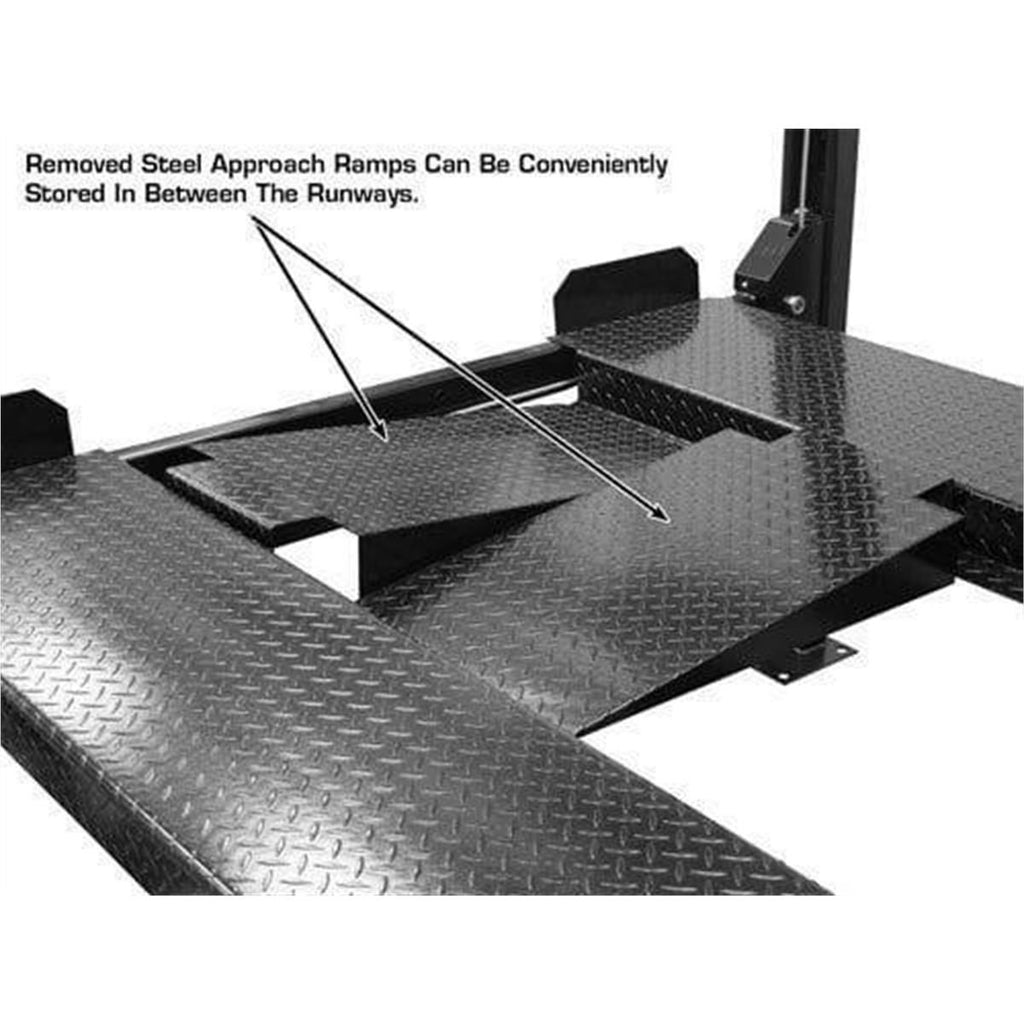

• Approach Ramp 37" (3' 1")
• Runway Width 21 1/2" (w/ Rails) or 18 3/4" (Driving Surface)
• Runway Length 165 3/4" (13' 9 3/4")
• Runway Thickness 4 1/2"
• Width Between Runways 37" (3' 1")
• Width Between Runway Rails 31 1/2" (2' 7 1/2")
• Outside Runway To Outside Runway 74 5/8" (6' 2 5/8")
• Clearance Between Columns 94 1/2" (7' 10 1/2")
• Length Between Columns 157 1/2" (13' 1 1/2")
• Maximum Wheel Base 153 1/2" (12' 9 1/2")
• Drive Thru (Outside Of Tire To Outside Of Tire) 80 1/2" (6' 8 1/2")
• Motor/Electrical Requirement 110 Volt, 30 AMP BREAKER REQUIRED
• Shipping Weight 1,800 lb.

•

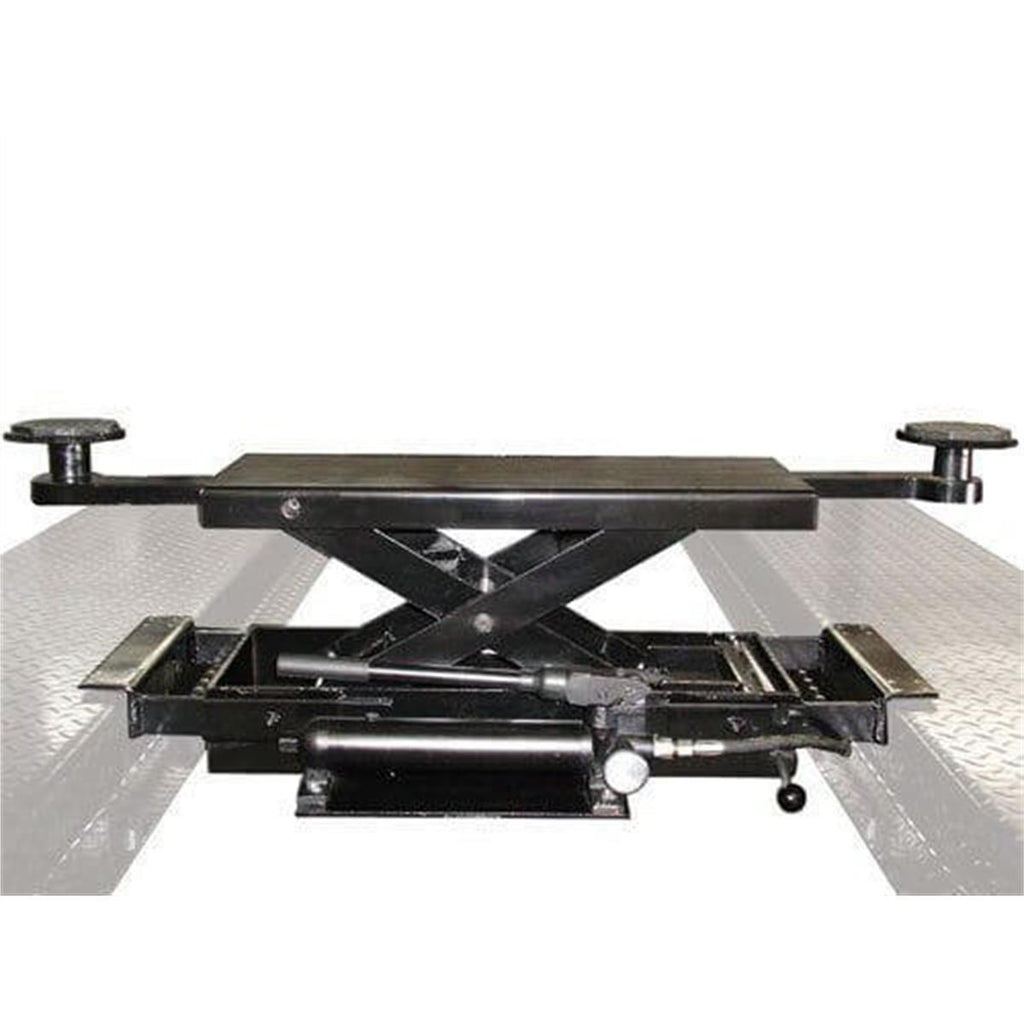

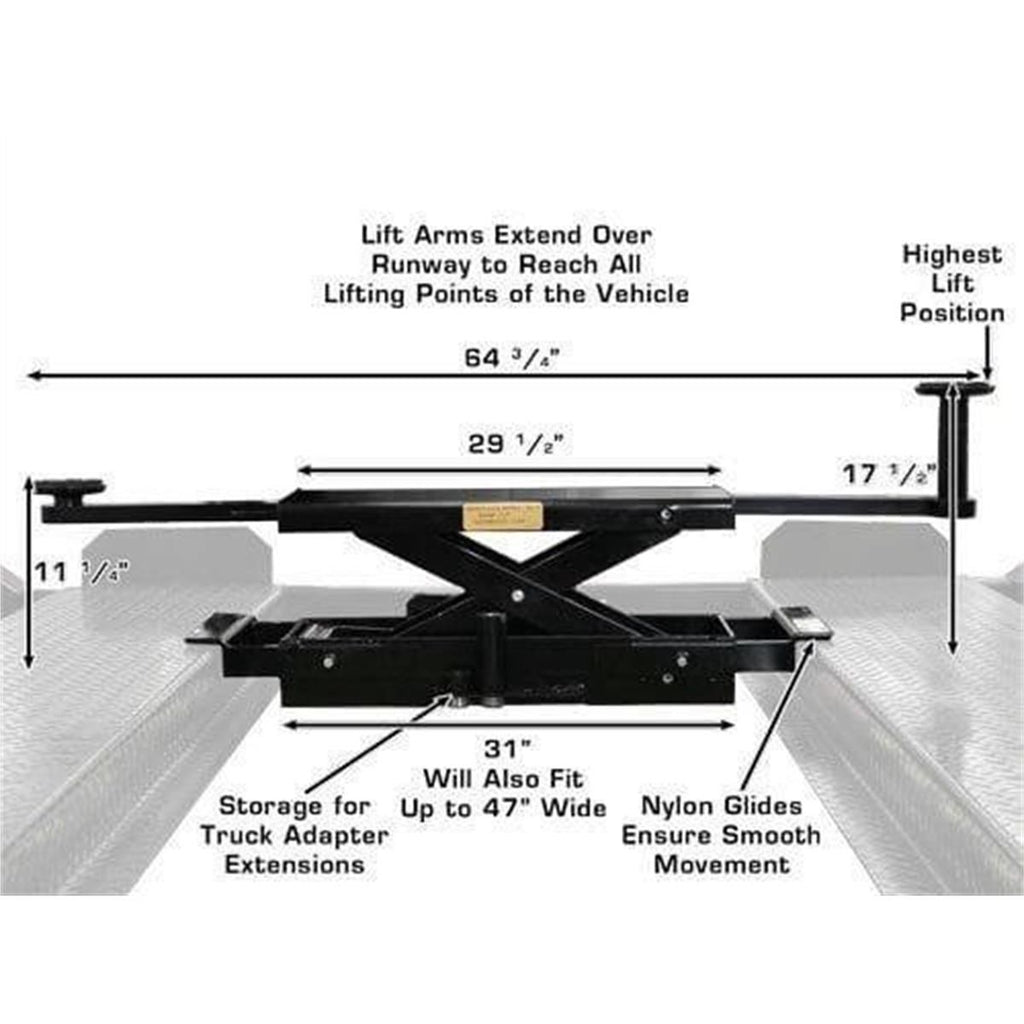

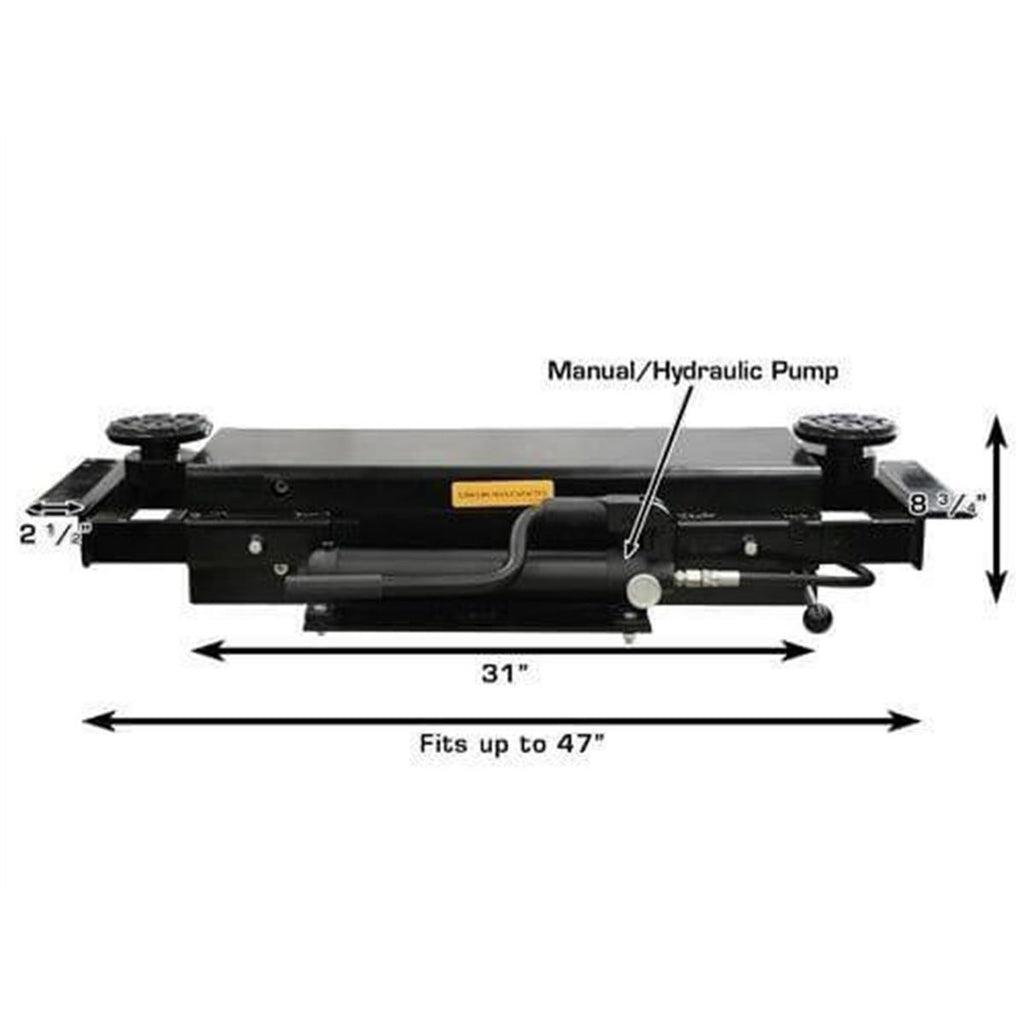

  Atlas® RJ35 Sliding Jack Specifications

  • Capacity: 3500 lbs
  • Lower Extension Width (Between Runway): 20 1/2" to 47"
  • Top Width (Arms Retracted & Extended): 39 12" to 64 3/4"
  • Min. Pad Height Above Runway (MAY VARY BY LIFT): 3 1/2"
  • Lift Pad Height Above Arm: 1 3/8"
  • Max Height Raised w/o Adapter: 11"
  • Max Height Raised w/ Adapters: 17 1/4"

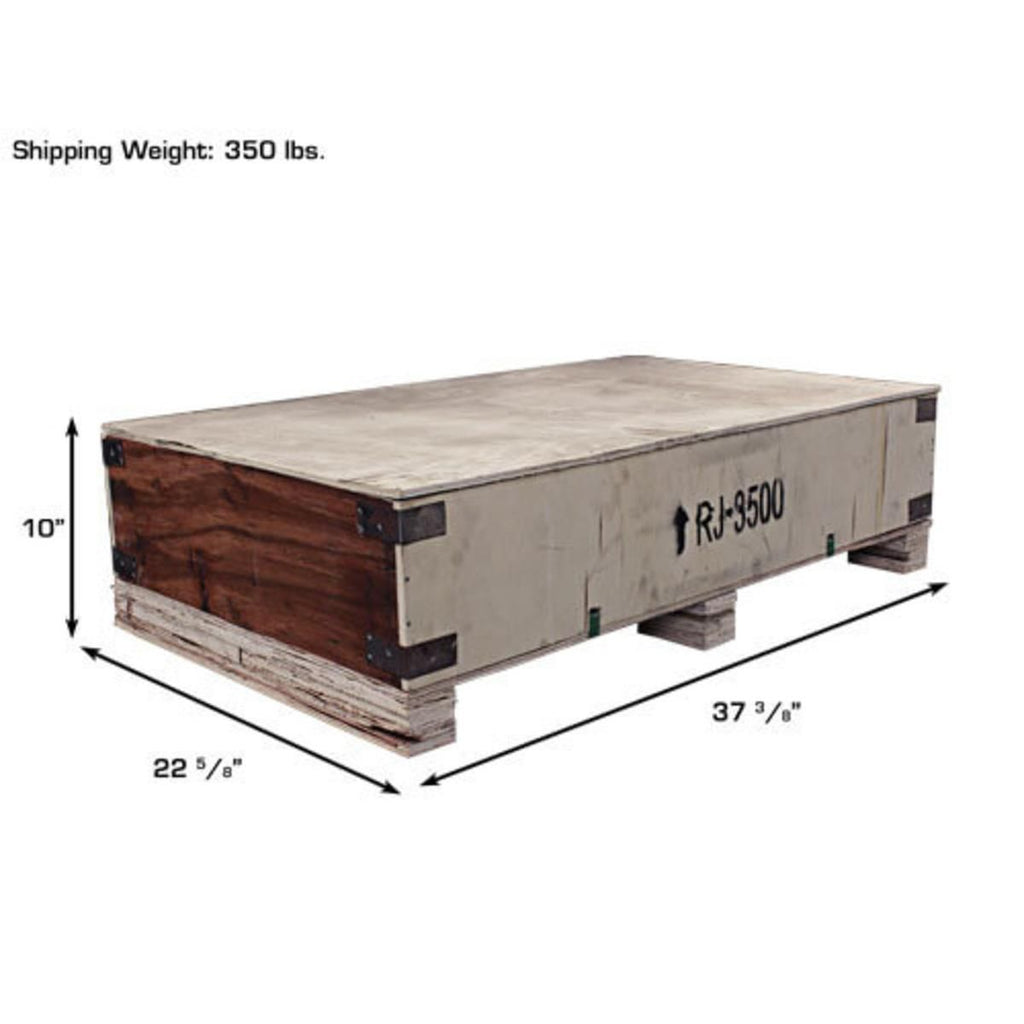

  • Shipping Weight: 350 lbs
  • Adapter Heights: 2 Each 1 1/2", 5"
  • Arm Hole/Adapter Peg Size: 1 1/2"
