Atlas 10000 Pound Base Plate 2 Post Lift
5 Great reasons to buy from us:
Features and Benefits:
- 10,000 lb capacity
- Commercial Grade
- Baseplate, Open-Top Style Lift
- Overall Height: 111 7/8? (9? 3 7/8?)
- Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously
- Super-Symmetric Arms
- Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
- Welded Support Gussets Increase Column Strength
- Automatic Arm Restraints
- Powder Coat Finish
- Free 12 Piece Truck Adapter Set
- Shipping Weight: 1,640 LBS.
- 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
- This part number WILL CALL ONLY

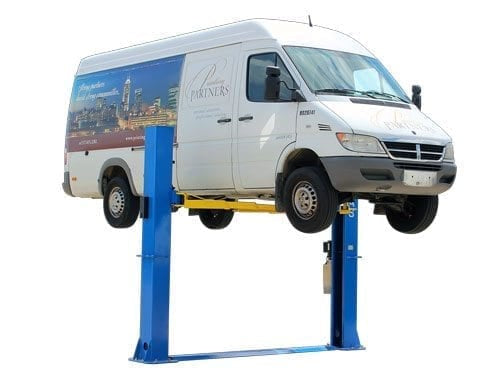

The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.
Atlas® ATTD-BP10000X Specifications
- Capacity 10,000 LB.
- Overall Height 111 7/8" (9� 3 7/8")
- Overall Floor Width 139 1/8" (11� 7 1/8")
- Outside Column to Outside Column 134 1/2" (11� 2 1/2")
- Maximum Lift Height (Without Adapters) 77 3/8"
- Maximum Lift Height (With Adapters) 86 3/8"
- Minimum Arm Height 4"
- Inside Column 112 1/4” (9� 4 1/4”)
- Drive Thru 101 1/4” (8� 5 1/4”)
- Column Size 9 1/2" x 11"
- Column Thickness of Steel 6mm
- Base Of Lift 17 1/2" x 21 1/2"
- Motor/Electrical Requirement 220 volt single (1) phasem (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight 1,640 LBS.
- Adapter Heights 4 Each 2”, 3”, 6”
- Arm Hole/Adapter Peg Size 1.5”
- Requires a minimum of 4" of concrete with a 3000 psi. rating
