Atlas BP8000 8000 Pound Base Plate Lift
5 Great reasons to buy from us:

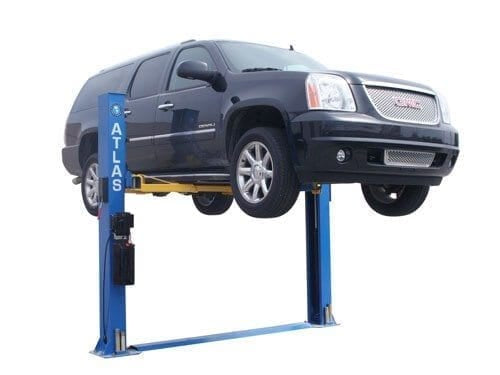

The Atlas® BP8000 is a baseplate two-post lift designed for low ceiling garages. The total column height of 108 inches or 9 feet allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 foot 3 inches. The BP8000 also has many of the popular features found on larger more expensive lifts, including a single-point lock release, Super-symmetric arms, and a twelve piece truck adapter set. This lift is not certified by the American Lift Instatute.
| Atlas® ATTD-BP8000 Specifications | ||
| Capacity | 8,000 LB. | |
| Overall Height | 108" (9’) | |
| Overall Floor Width | 132" (11’) | |
| Outside Column to Outside Column | 124" (10’ 4") | |
| Maximum Lift Height (Without Adapters) | 75 1/2" | |
| Maximum Lift Height (With Adapters) | 86 1/2" | |
| Minimum Arm Height | 4" | |
| Inside Column | 109 1/8” (9’ 1 1/8”) | |
| Drive Thru | 99” (8’ 3”) | |
| Column Size | 7 1/4" x 11" | |
| Column Thickness of Steel | 6mm | |
| Base Of Lift | 17 1/2" x 17 3/4" | |
| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
|
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |
| Shipping Weight | 1,300 LBS. | |
| Adapter Heights | 4 Each 2”, 3”, 6” | |
| Arm Hole/Adapter Peg Size | 1.5” | |
| Requires a minimum of 4" of concrete with a 3000 psi. rating | ||
