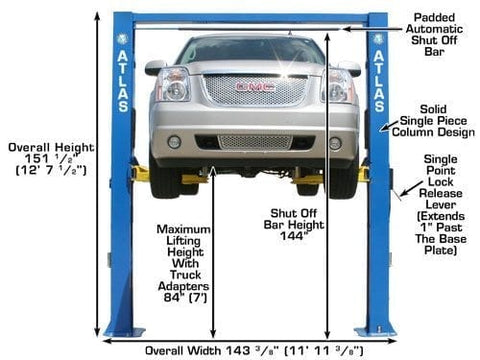

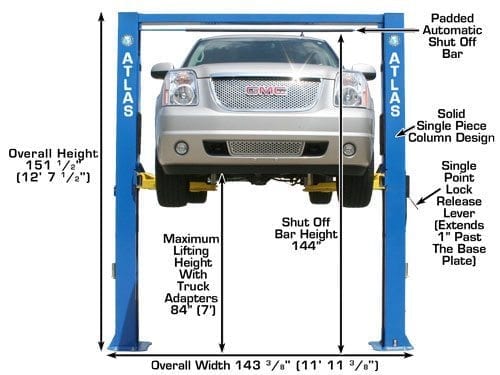

Atlas OHX10000X 10,000 Pound Extra Tall Extra Wide 2 Post Lift
5 Great reasons to buy from us:

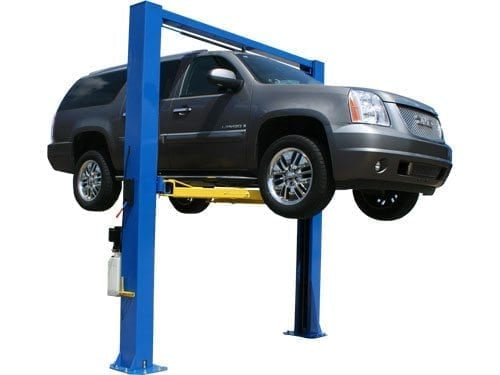

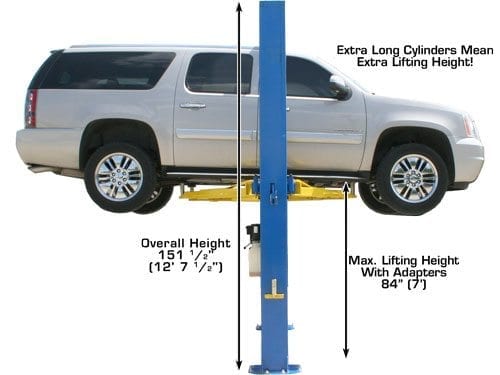

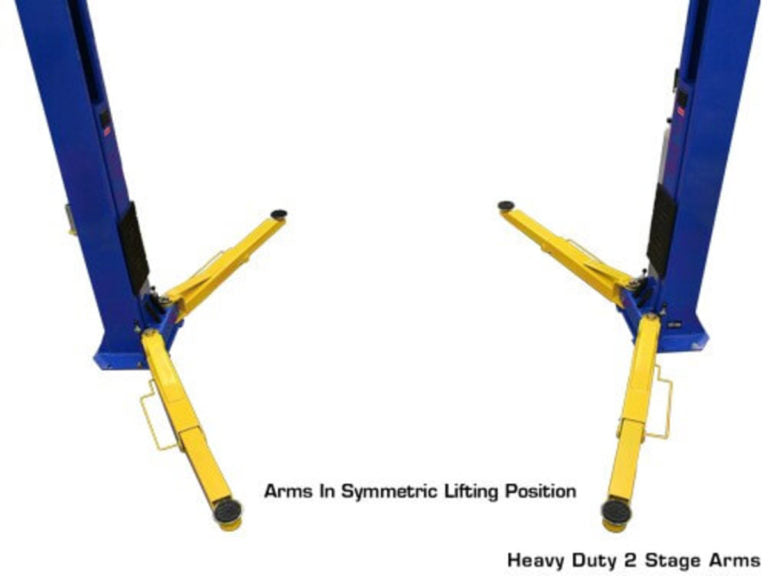

The Atlas® OHX10000X two post commercial grade above ground lift is the perfect choice for those large commercial repair facilities or the “Mr. Homeowner” who demand the highest quality at the absolute best price. The Atlas® OHX10X is a TRUE 10,000 lb. capacity two post lift that offers a great value to the customer. Due to the drive through width, arm length and arm style the Atlas® OHX10000X was engineered and manufactured to lift a wide range of vehicles, specifically longer wheel based vehicles such as a one-ton diesel dually. Extra lifting height and extra width between the columns allows the operator to work on varied sizes of vehicles and offers a “fudge factor” of about 6 inches when “driving through” to another part of the building or lifting the van or “ladder truck”. If you are over 6′ 1″, the Atlas® OHX10X has longer cylinders which allow the vehicle to be “lifted” about 3 inches higher than many other lifts.

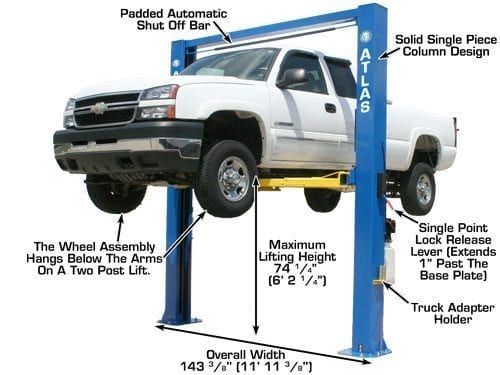

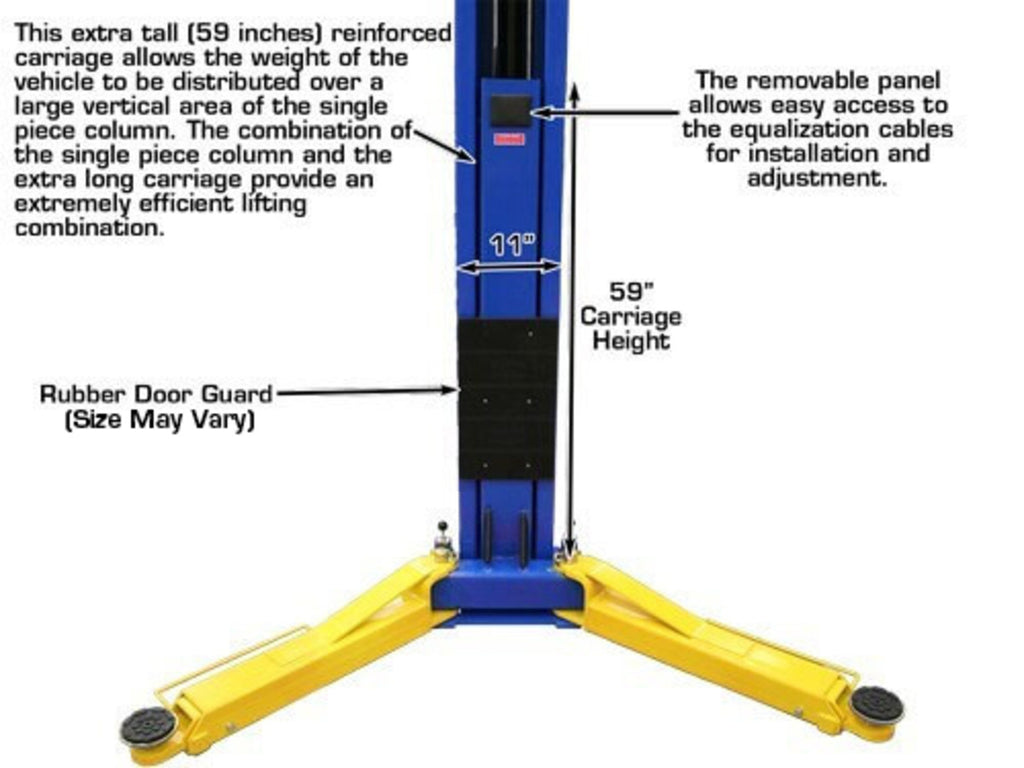

The Atlas® OHX10X incorporates a single piece 12′ 7″ formed column and an extra-long carriage that provides maximum column and arm strength to lift and support a 10,000 lb. vehicle. The single piece columns require the customer to have a ceiling of at least 13 feet to stand the column. This lift is not certified by the American Lift Institute.

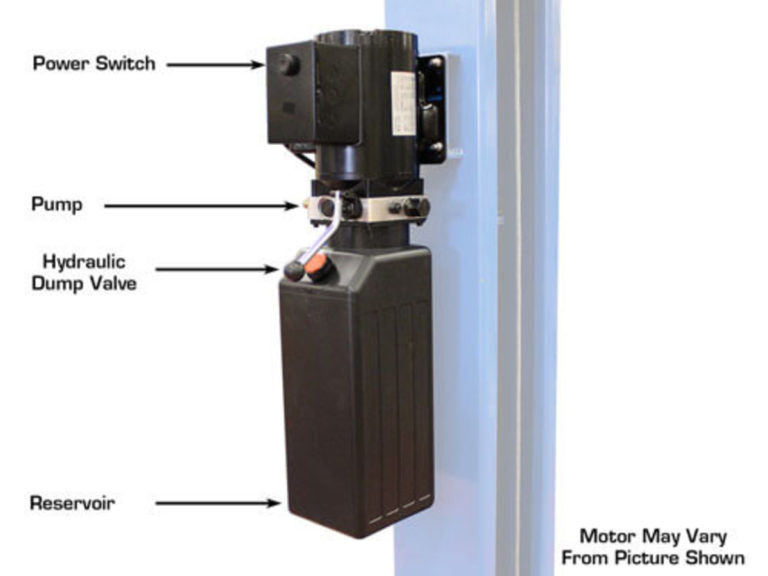

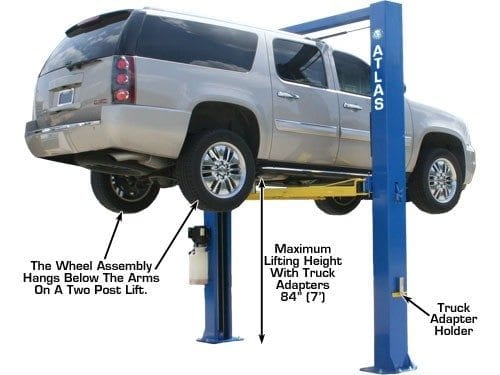

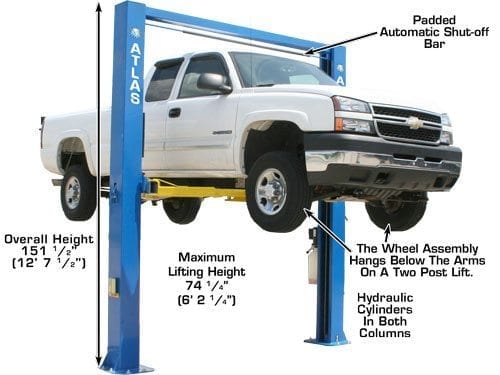

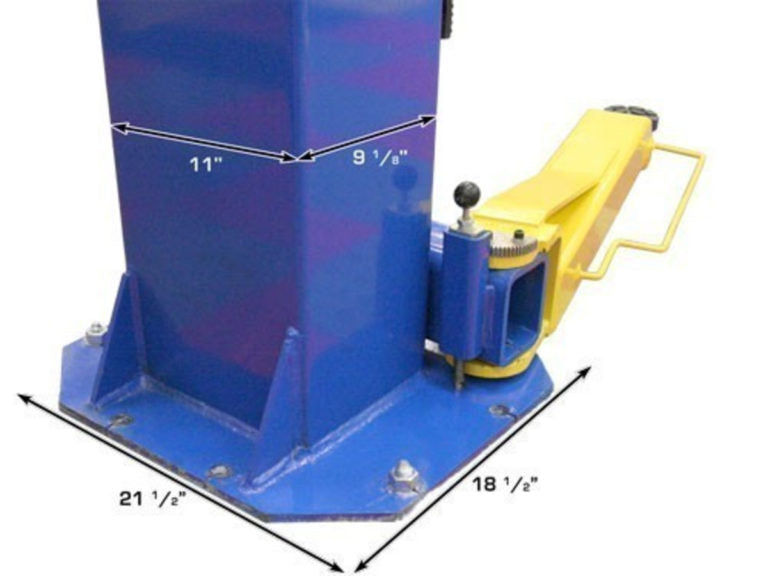

Atlas® ATTD-OHX10000X SpecificationsCapacity10,000 LB.Overall Height152" (12’ 8”)Overall Floor Width144 3/8" (12’ 3/8")Outside Column to Outside Column136" (11’ 4")Maximum Lift Height (Without Adapters)74 3/4"Maximum Lift Height (With Adapters)85 3/4"Minimum Arm Height4 1/2"Inside Column118 1/4” (9’ 10 1/4”)Drive Thru106 7/8” (8’ 10 7/8”)Column Size9 1/8" x 11"Column Thickness of Steel5mmBase Of Lift18 1/2" x 21 1/2"Motor/Electrical Requirement220 volt single (1) phase.

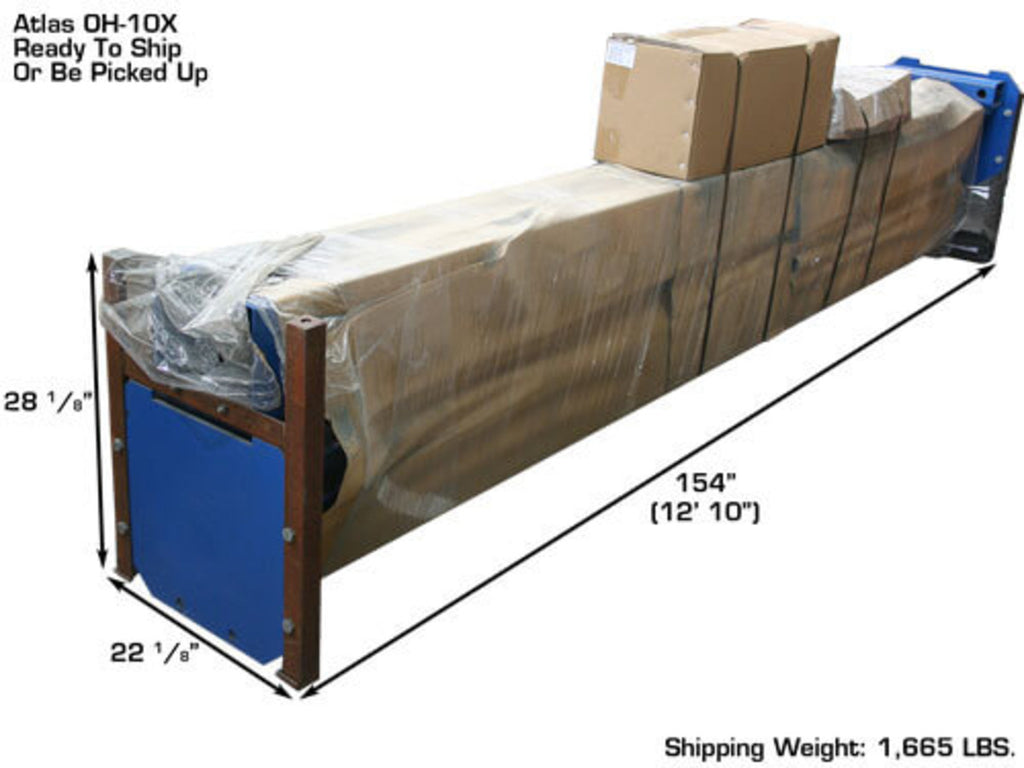

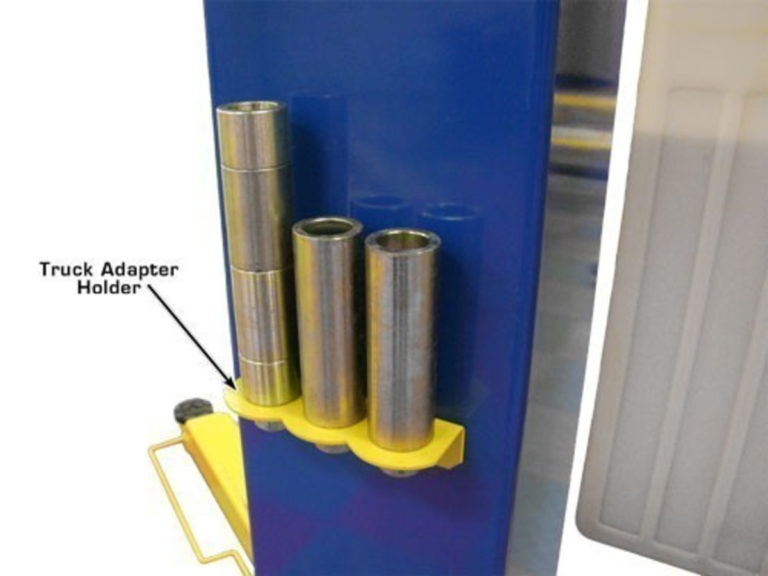

A 30 amp breaker is recommendedOil Requirement3-5 Gallons AW32/AW46 (NOT INCLUDED)Shipping Weight1,665 LBS.Adapter Heights4 Each 2”, 3”, 6”Arm Hole/Adapter Peg Size1.5” Requires a minimum of 4" of concrete with a 3000 psi. rating
