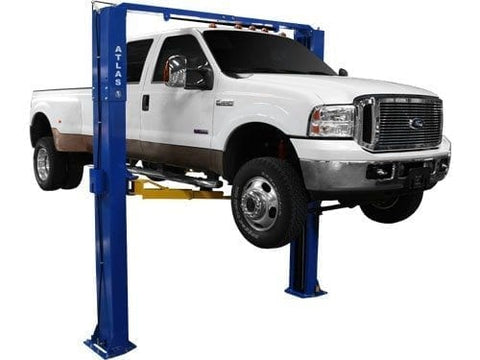

Atlas PV10PX 10,000 Pound Overhead 2 Post Automotive Lift
5 Great reasons to buy from us:
Local pickup ONLY! Will not ship. Please make appointment for pickup.
The Atlas® PV series represents the absolute best value for the customer who demands a heavy duty professional grade two post lift at the lowest possible price. Atlas® has been manufacturing the PV series two post above ground lifts for over a decade. Thousands sold! Descriptions such as “bulletproof”, built like a brick outhouse, tougher than nails, and other such euphemistic phrases are used every day to describe any of the Atlas® PV series models. Whether you are an automotive shop or working on personal vehicles from your home, the PV10PX is the industry standard!
The commercial grade Atlas® PV10PX two post lift includes some modifications and improvements that make it one of the most popular above ground lifts in the world.

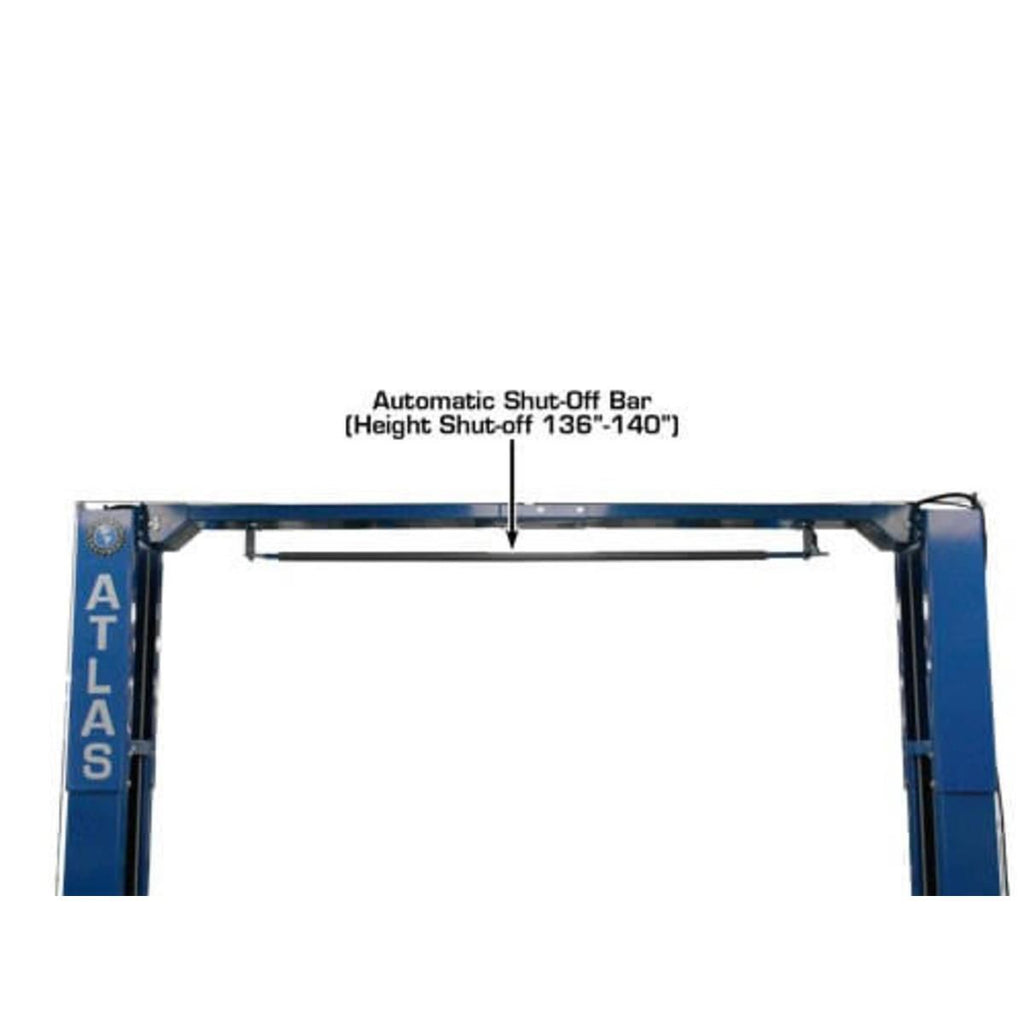

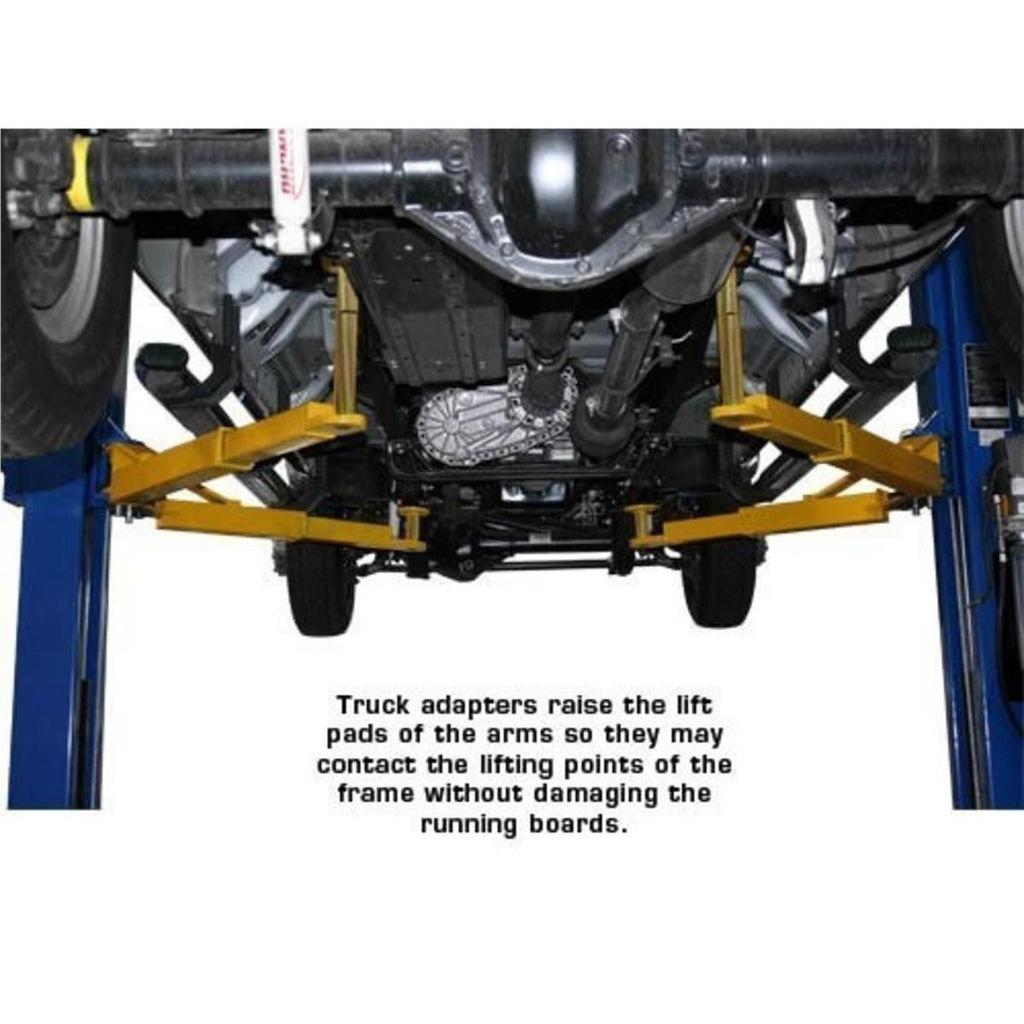

This lift is the perfect choice for use in either a large commercial service department or for the “pole barn” owner who wants the “biggest and baddest” lift in the country. The Atlas® PV10PX is designed and engineered to safely lift (and work on) everything from a Smart Car® to a one ton diesel dually. This lift incorporates a padded shut-off bar to protect the top of the vehicle from contacting the crossbar. The carriages are equipped with rubber protective covers (size may vary) to help prevent the vehicle’s doors from damage if opened into the columns or carriages. The PV10PX also includes a deluxe truck adapter set (12 pieces vs. the standard 8 pieces) and the rubber lift pad that has been reinforced to ensure a solid contact with the vehicle’s lifting points. This lift is not certified by the Amarican Lift Institute (ALI).
| Atlas® XH-PV10PX Specifications | ||
| Capacity | 10,000 LB. | |
| Overall Height | 143 1/8" (11’ 11 1/8”) or 147” (12’ 3”) | |
| Overall Width w/Motor | 145" (11’ 11”) | |
| Outside Column to Outside Column | 125 1/2" (10’ 5 1/2") | |
| Maximum Lift Height (Without Adapters) | 72 1/2" | |
| Maximum Lift Height (With Adapters) | 81 1/4" | |
| Minimum Arm Height | 4 1/2" | |
| Inside Column | 110 1/8” (9’ 2 1/8”) | |

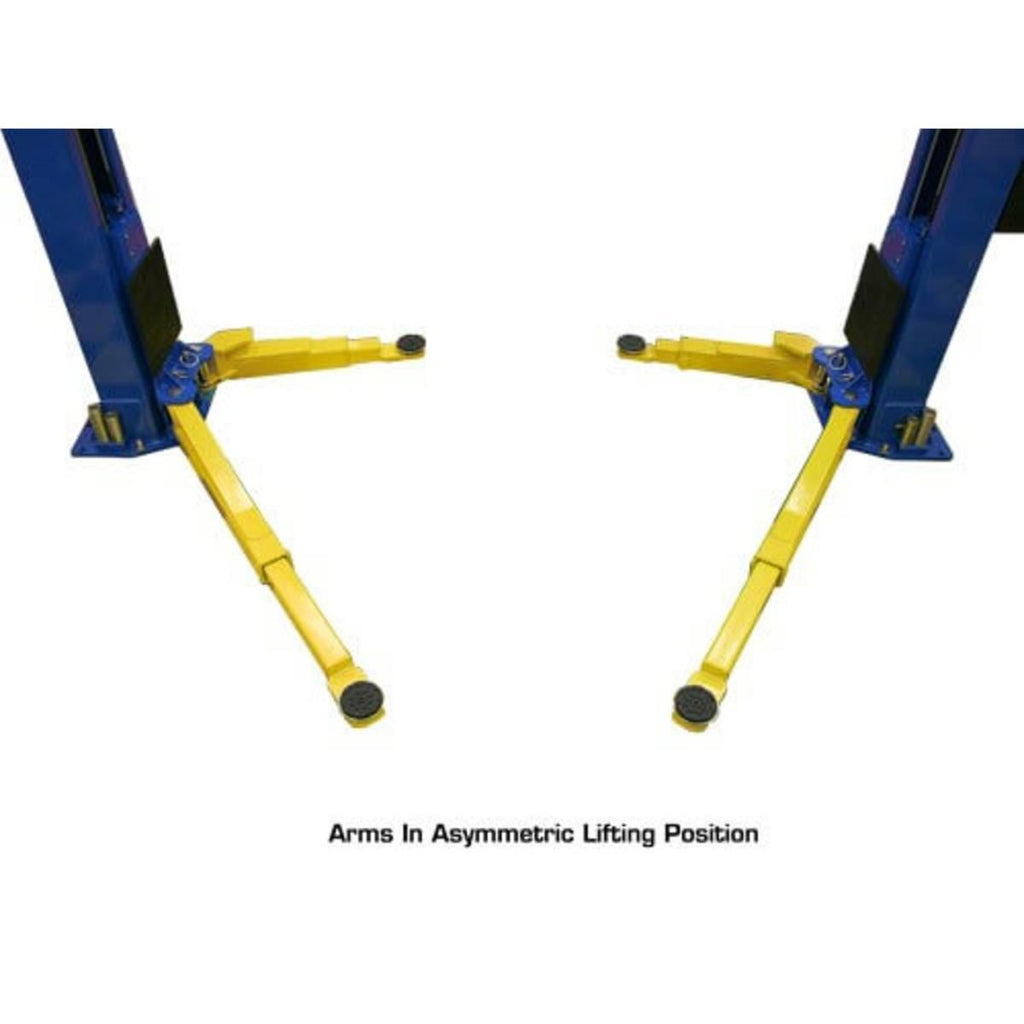

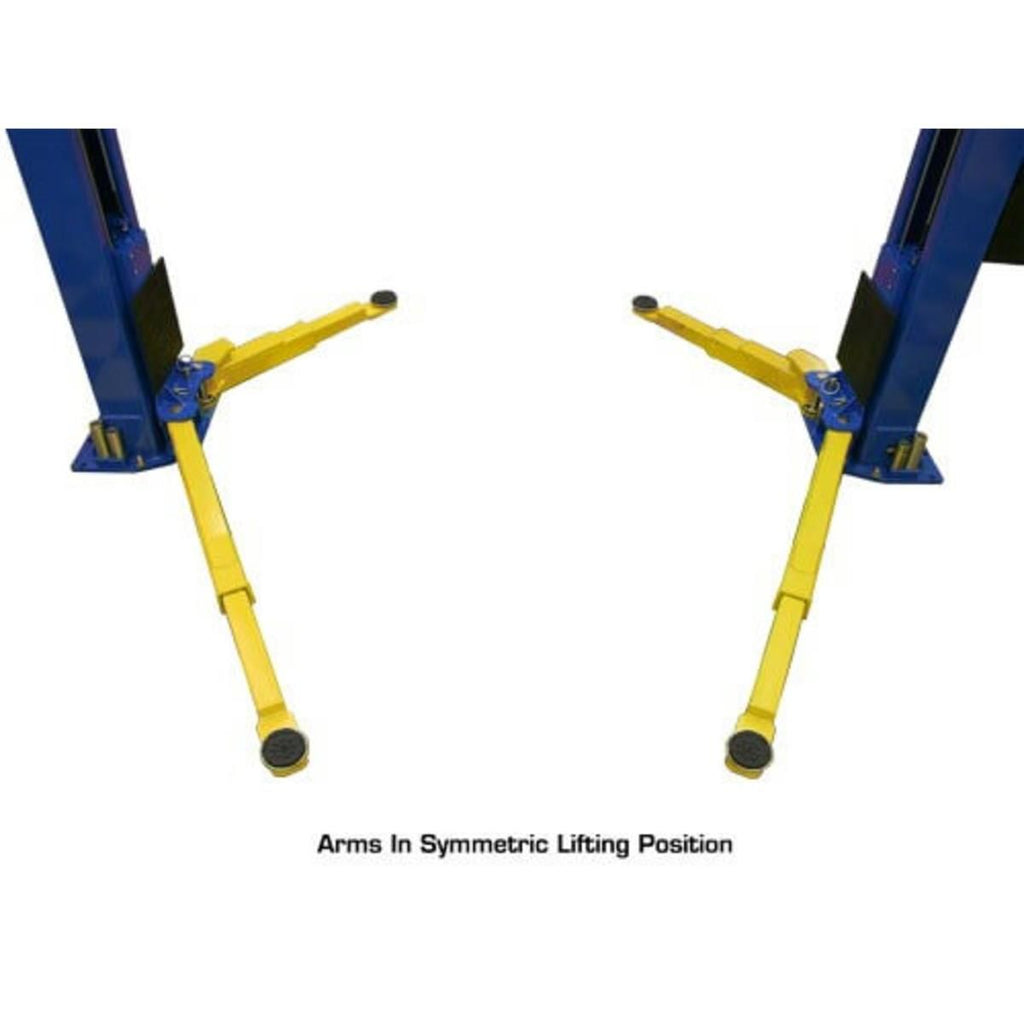

| Drive Thru | 96 1/4” (8’ 1/4") Symmetric/ 90 1/4" (7' 6 1/4") Asymmetric | |

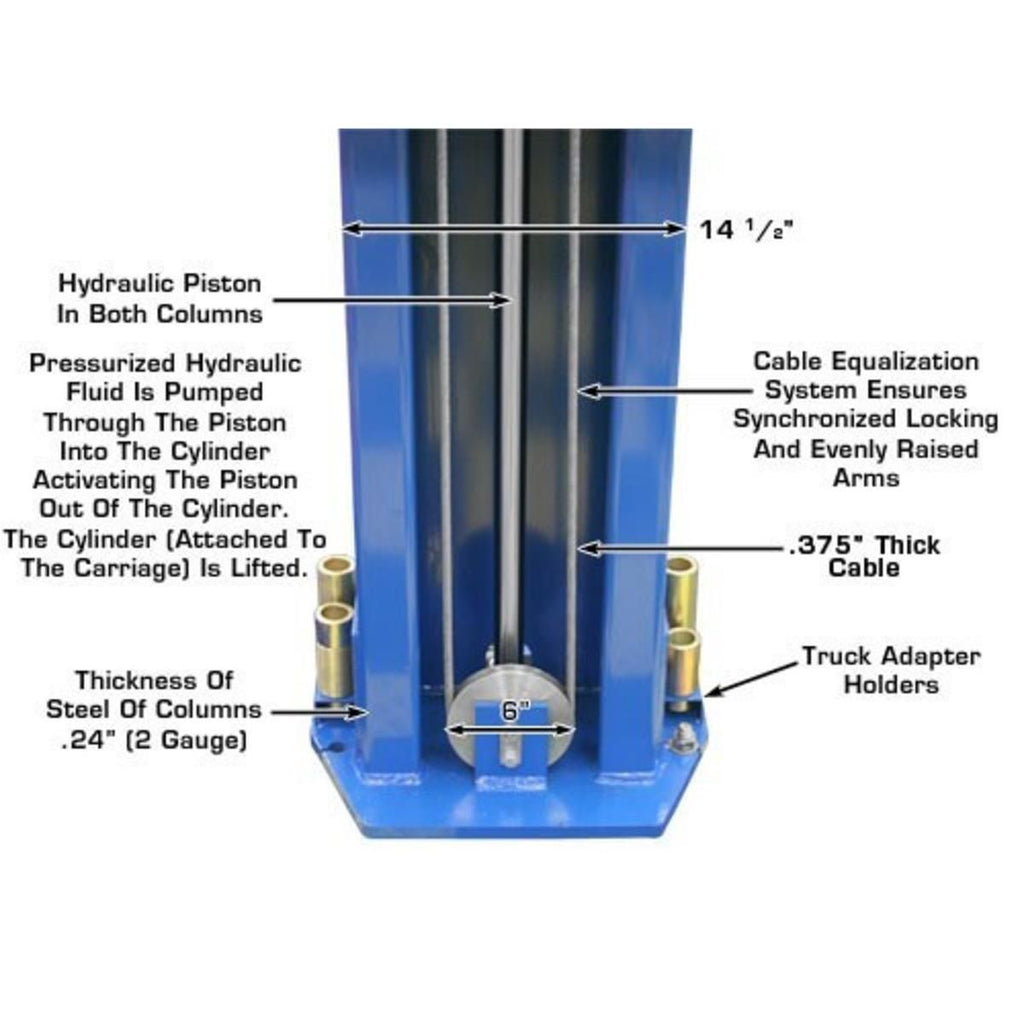

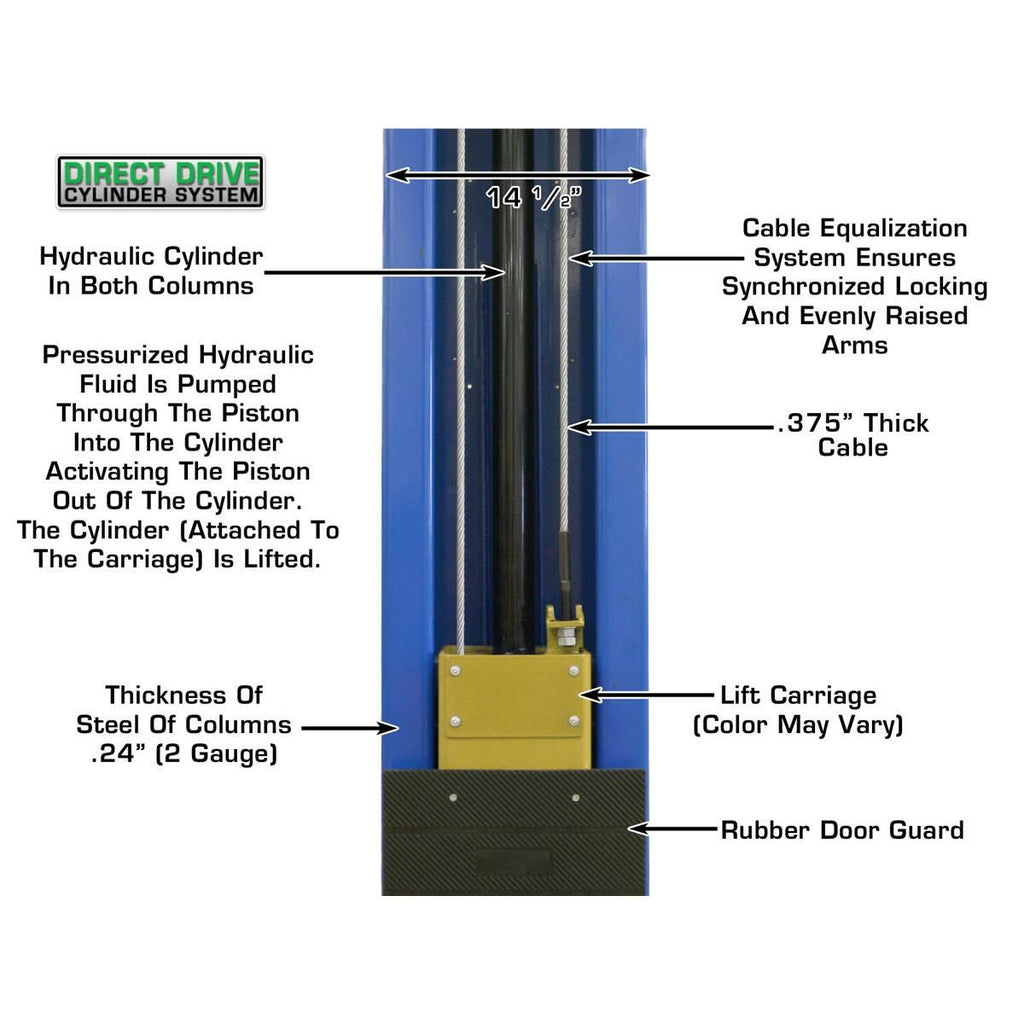

| Column Size | 7 1/2" x 14 1/2" | |
| Column Thickness of Steel | 6mm | |

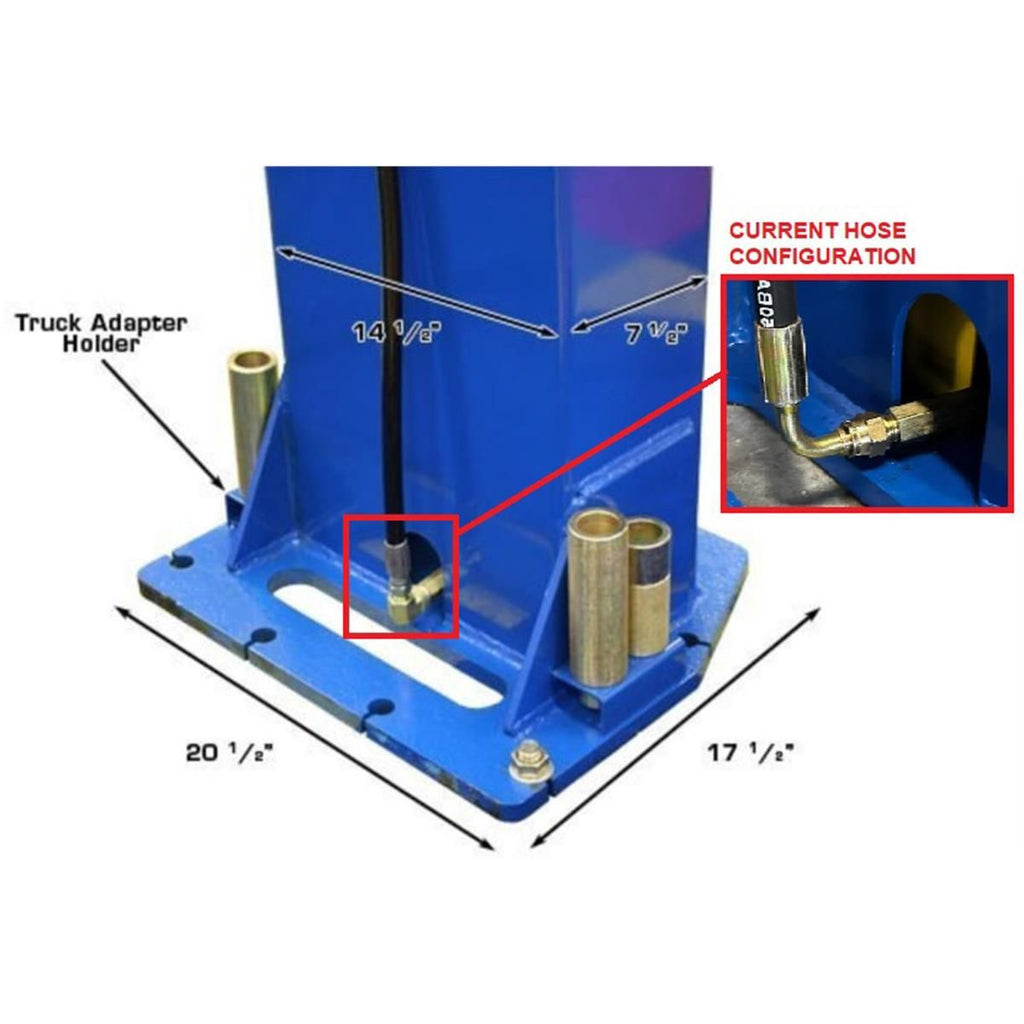

| Base Of Lift | 17 1/2" x 20 1/2" | |
| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
|
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |

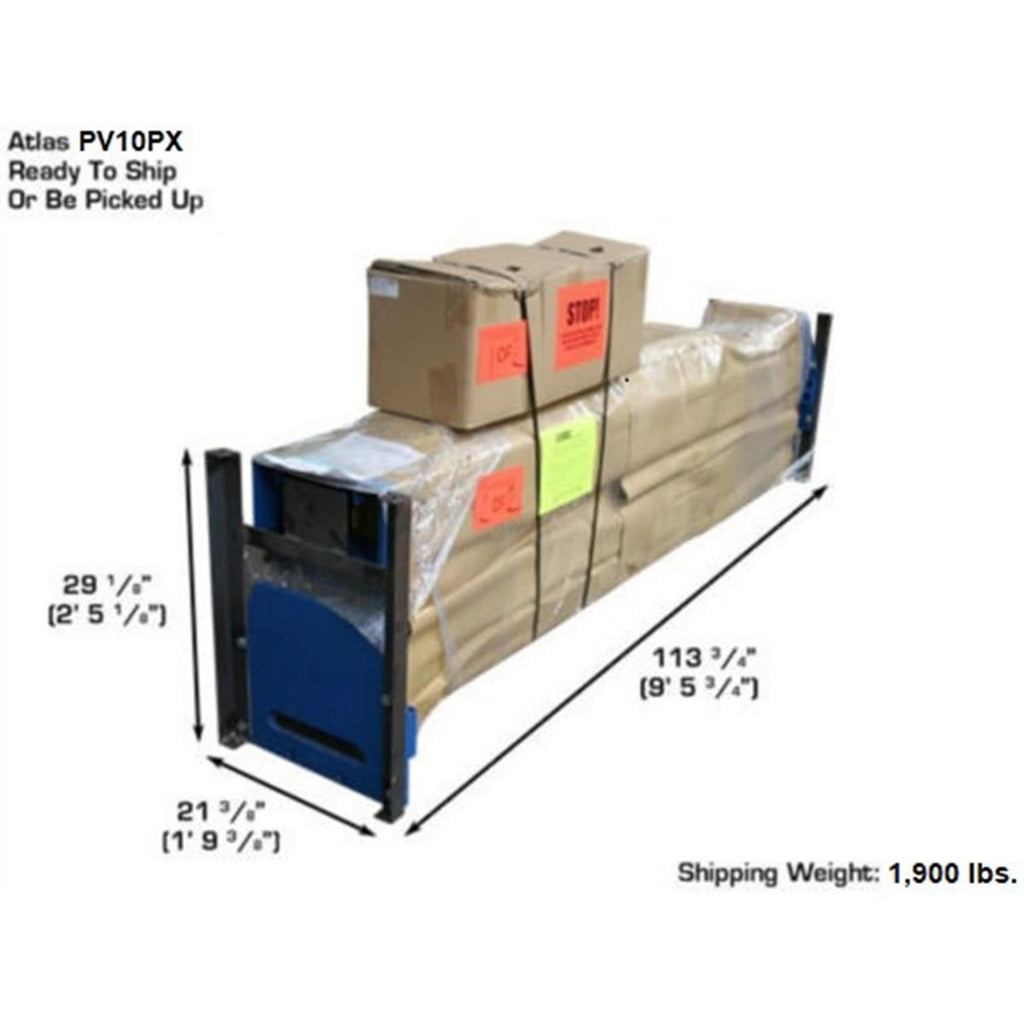

| Shipping Weight | 1,900 LBS. | |

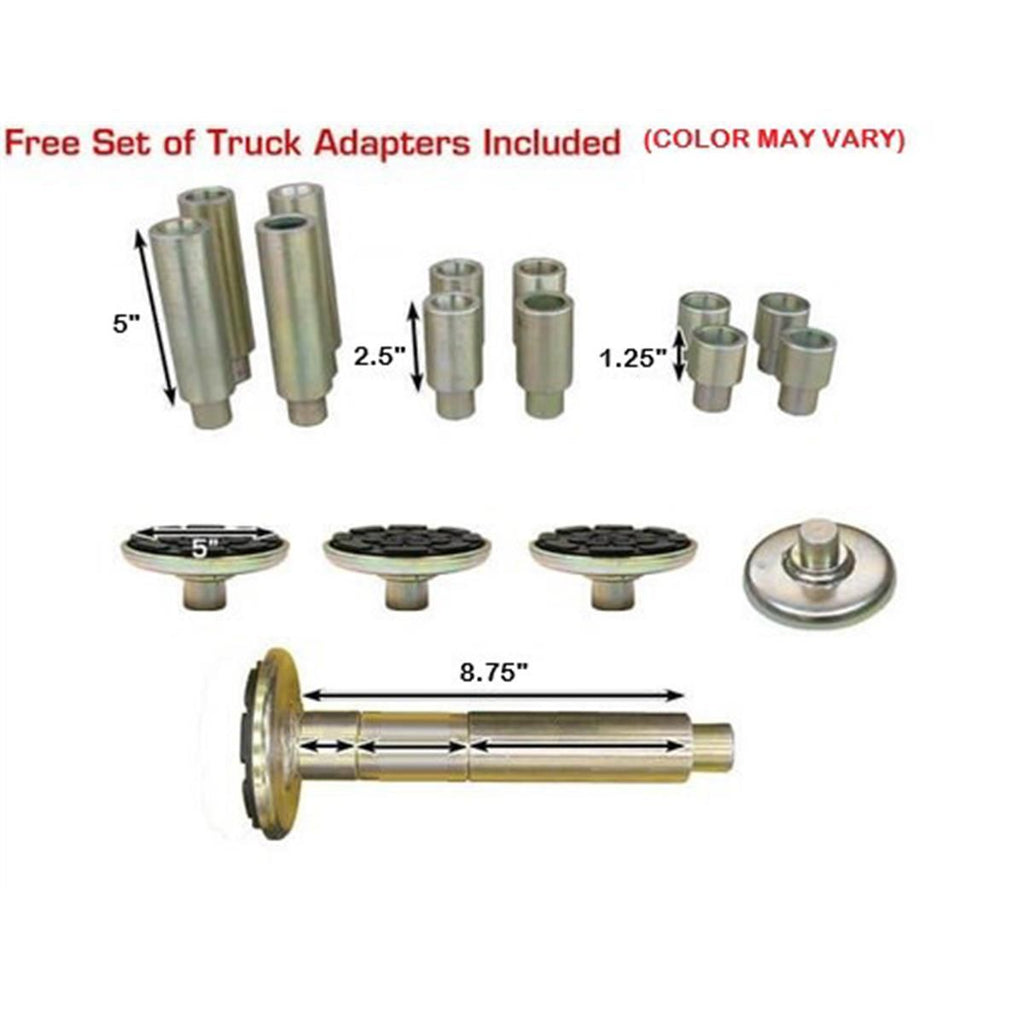

| Adapter Heights | 4 Each 1.25”, 2.5”, 5” | |
| Arm Hole/Adapter Peg Size | 1.5” | |
| Requires a minimum of 4" of concrete with a 3000 psi. rating | ||
